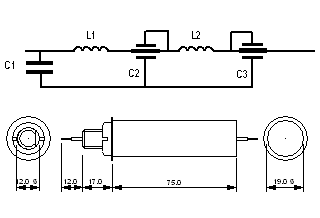

Feedthrough Suppression Filter 6A






General Details

MFD's  6A EMC feedthrough filter offers EMI suppression up into the GHZ range for high tech applications such as defence, telecoms, medical, railways, shielded rooms, IT and test equipment.



Technical Details
Capacitance 1uF
Inductance 60uH
Working Voltage 250V AC
Test Voltage 2200V DC (1 Min)
Rated Current 6A (12A Max with reduced insertion loss)
Resistance <15mΩ.
Leakage Current <100mA at 50Hz.
Insulation Resistance >10,000 MΩ/uF @ 20oC
